Mondraker Crafty Carbon RR SL ED2 - Blue

Brand:Mondraker

Code:1024448CRAFTY CARBON RR S

For long days riding over demanding terrains and big features, Mondraker present the Crafty electric mountain bike. All that Mondraker frame design expertise boosted with the rider favourite Bosch Smart power unit makes for an E-MTB ready for everything theEarth has to offer.

The Crafty Carbon RR SL spec is the top of the Crafty range and is a bestseller when it comes to high-end E-MTB's. Offering a truly balanced setup it feels agile, reactive and efficient whether you’re riding uphill or down. The frame’s Zero Suspension System is optimized for you to enjoy the trail whatever surprises it brings. You’ve got Bosch’s Smart System motor with its all-new wireless Mini Remote control and integrated System Controller to keep your cockpit clear. Then you’ve got a 750Wh battery to keep the trails flowing by without ever having to worry about range anxiety.It's got everything you need ready to go.

Bosch Smart System-

The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 750Wh battery that allows you to enjoy even more kilometers of trail on a single charge.

Technical Information
Frame -Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock -Fox Float X Factory Kashima EVOL 205x65mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings -Medium compression, Medium rebound, 0.2 volume spacer
Fork -Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset -Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem -Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar -Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips -Onoff Desert, 1lock-on, 135mm
Seatpost -RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle -FIZIK Terra Aidon X5 145mm
Front brake -Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake -Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever -Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims -e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes -e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub -e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub -e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire -Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire -Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset -E.13 TRS Race carbon ebike, 165mm
Rings -Sram T-Type 34T, steel, narrow-wide, 104 BCD
Chain -Sram XX Eagle T-Type, 12s, Powerlock
Rear derailleur -Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers -Sram Eagle AXS Pod MMX, 12s
Cassette -Sram XS-1297, 10-52T, T-Type, 12s
Weight -23,3 kg
Display -Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor -Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery -Bosch Powertube 750Wh
Sizing Information

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+

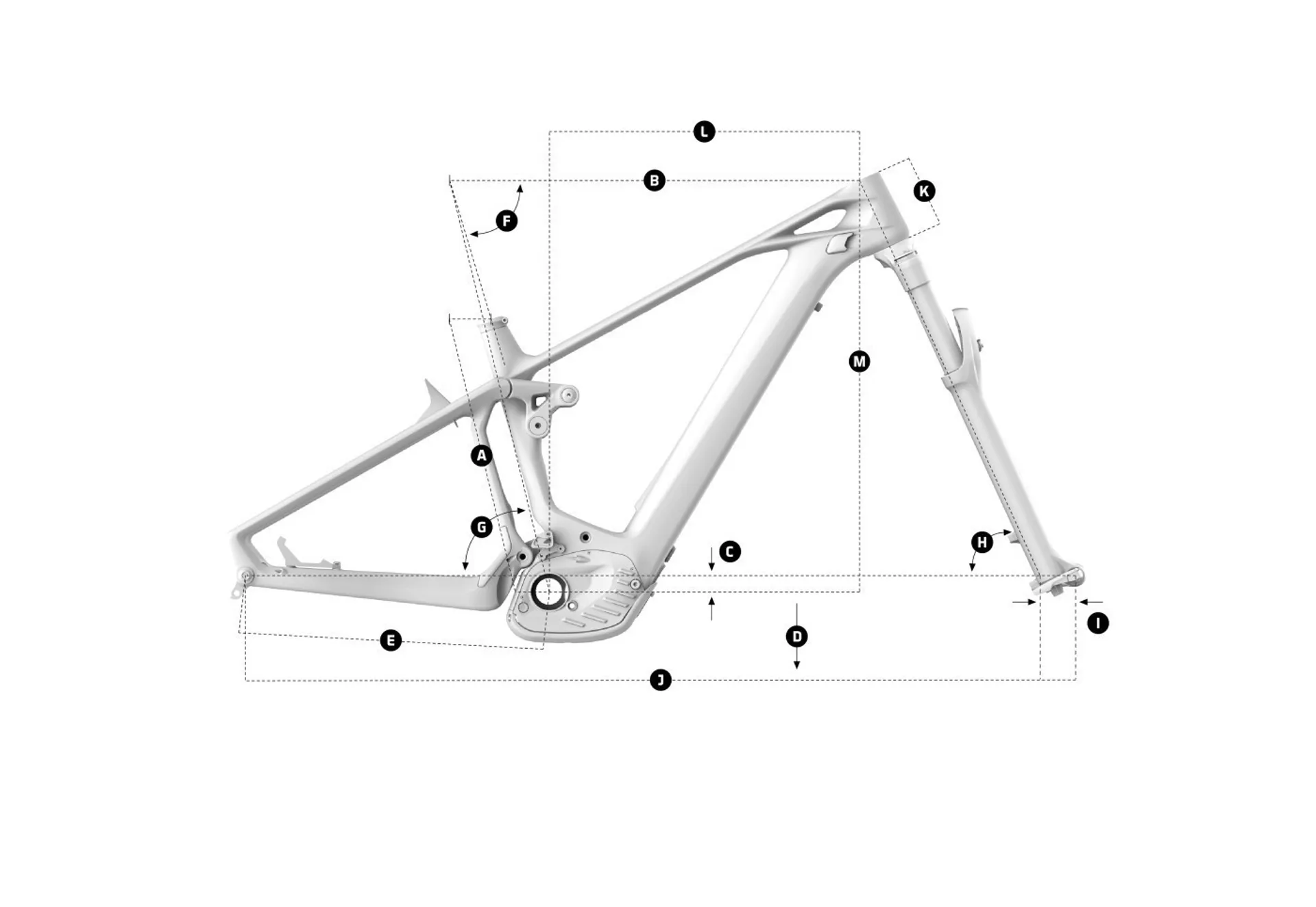

FRAME SIZE
SMLXL
ASeattube length380 mm420 mm450 mm480 mm
BToptube length605 mm625 mm650 mm670 mm
CBottom bracket drop-25 mm-25 mm-25 mm-25 mm
DBottom bracket height350 mm350 mm350 mm350 mm
EChainstay length455 mm455 mm455 mm455 mm
FSeat tube angle73.5°73.5°73.5°73.5°
GEffective seattube angle76°76°76°76°
HHeadtube angle65.5°65.5°65.5°65.5°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1225 mm1245 mm1265 mm1285 mm
KHeadtube length110mm110mm130 mm130 mm
LReach450 mm470 mm490 mm510 mm
MStack622 mm622 mm640 mm640 mm
