Mondraker Dune R Silver Carbon Red

Brand:Mondraker

Code:24DUNERRacingsilver

DUNE: SOMETHING SPECIAL IN ITS CLASS

The Mondraker Dune R 2024 pushes the boundaries of Mondraker's light e-Bikes. Building upon the NEAT's celebrated characteristics of lightness and agility, the DUNE carves a distinct path by incorporating the power and performance expected from a Mondraker full suspension electric mountain bike... similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL.

This innovative e-MTB transcends categorization. Our review confirmed it hit the bullseye in terms of delivering playful handling and potent capabilities. Imagine a super enduro shrunk down to a light e-bike format, tipping the scales at a remarkable sub-20kg weight. The DUNE's foundation is the remarkable Stealth Air Carbon frame, a marvel of engineering weighing a mere 2,650 grams. This lightweight platform is paired with Bosch's latest Performance SX motor, renowned for its perfect balance of power and efficiency. The result? A light and responsive ride with enough muscle to tackle demanding terrain.

TWO DUNES: 2009 TO 2024

The original DUNE (2009) was Mondraker's first bike with Zero Suspension, built for enduro racing with an aluminum frame and 160mm travel (170mm fork option on XR). It remained in production until 2020, with a carbon fiber version available in the last five years.

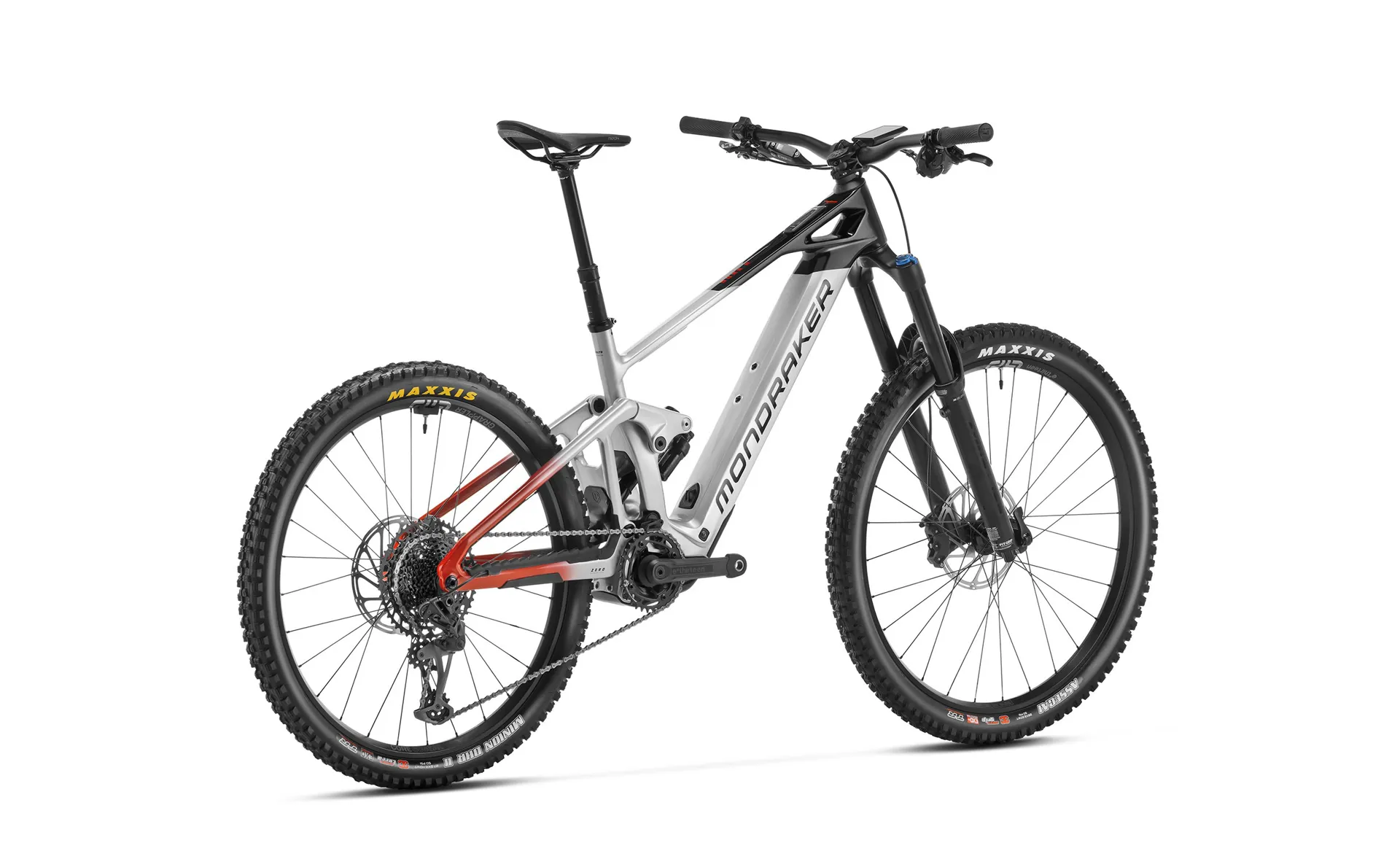

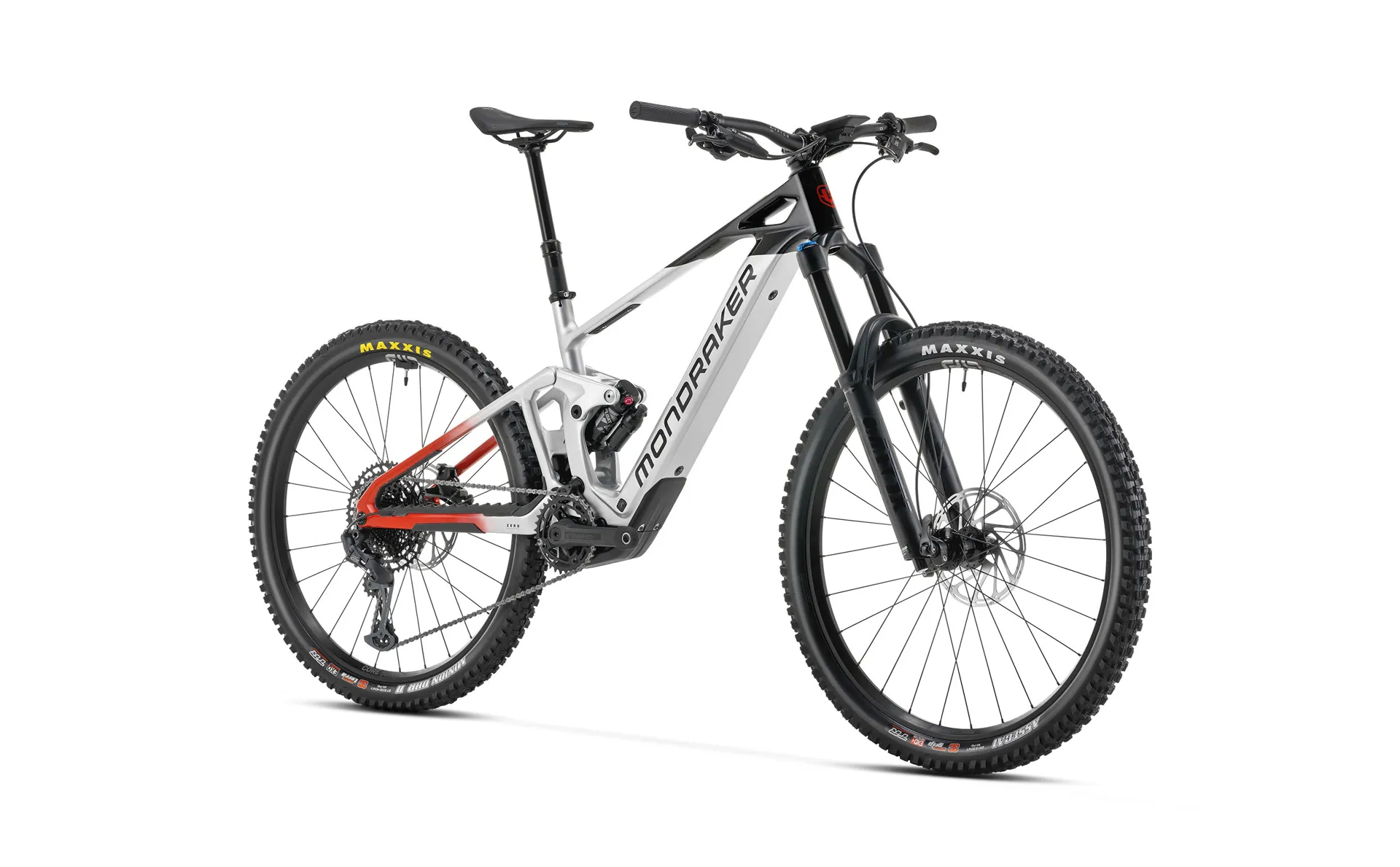

Mondraker Dune R 2024 - Silver/Black/Red

DUNE-NEAT: FAMILY TIES

Unlike other Mondraker electric mountain bikes such as the NEAT, the DUNE prioritizes aggressive riding with a lightweight build. This e-MTB boasts a Stealth Air Carbon frame, long-travel suspension, mixed-wheel sizes, and a powerful Bosch SX motor. Despite this aggressive setup, the DUNE stays remarkably light at under 20kg, making it a true contender in Mondraker's Superenduro category.

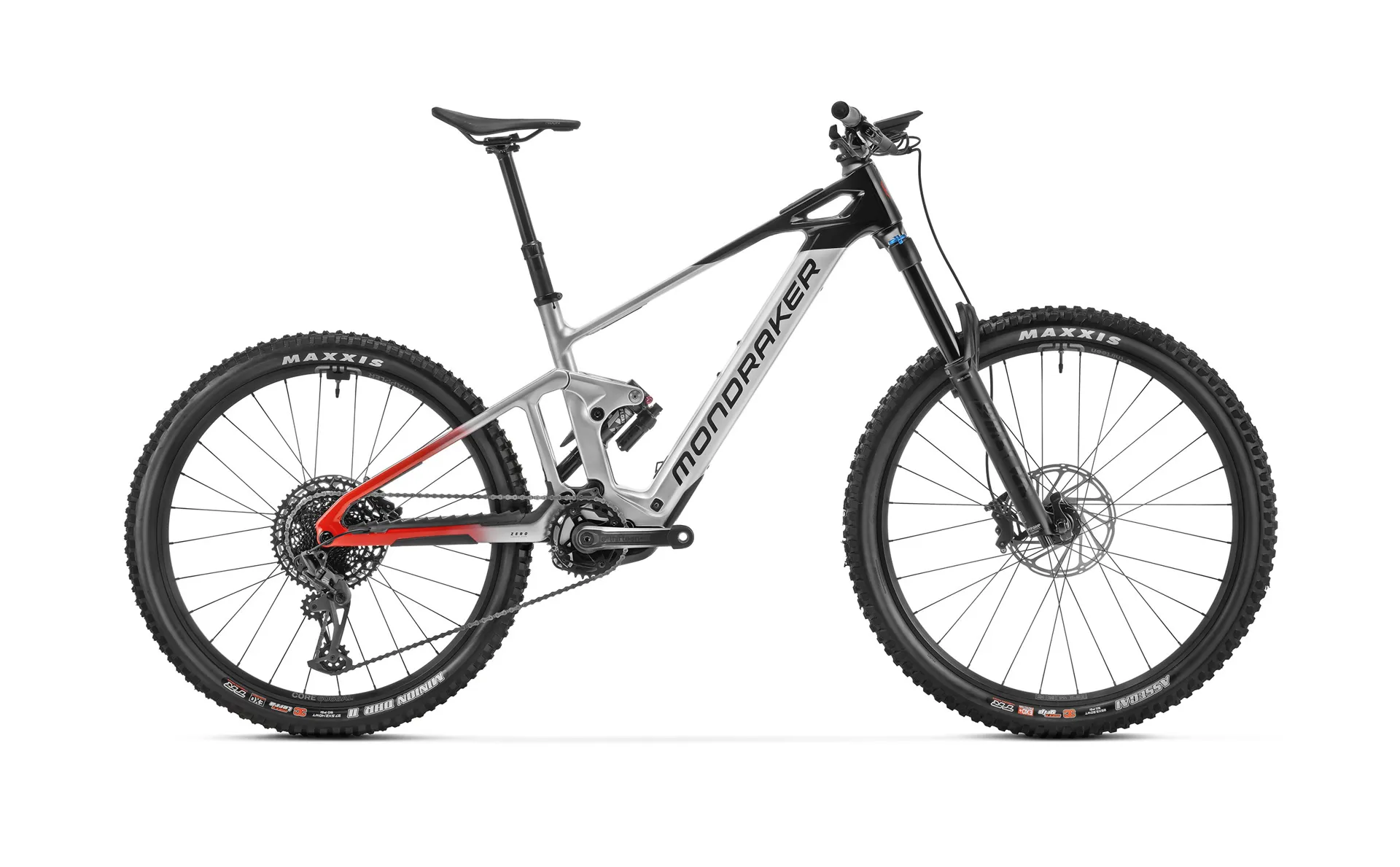

Mondraker Dune R 2024 - Silver/Black/Red

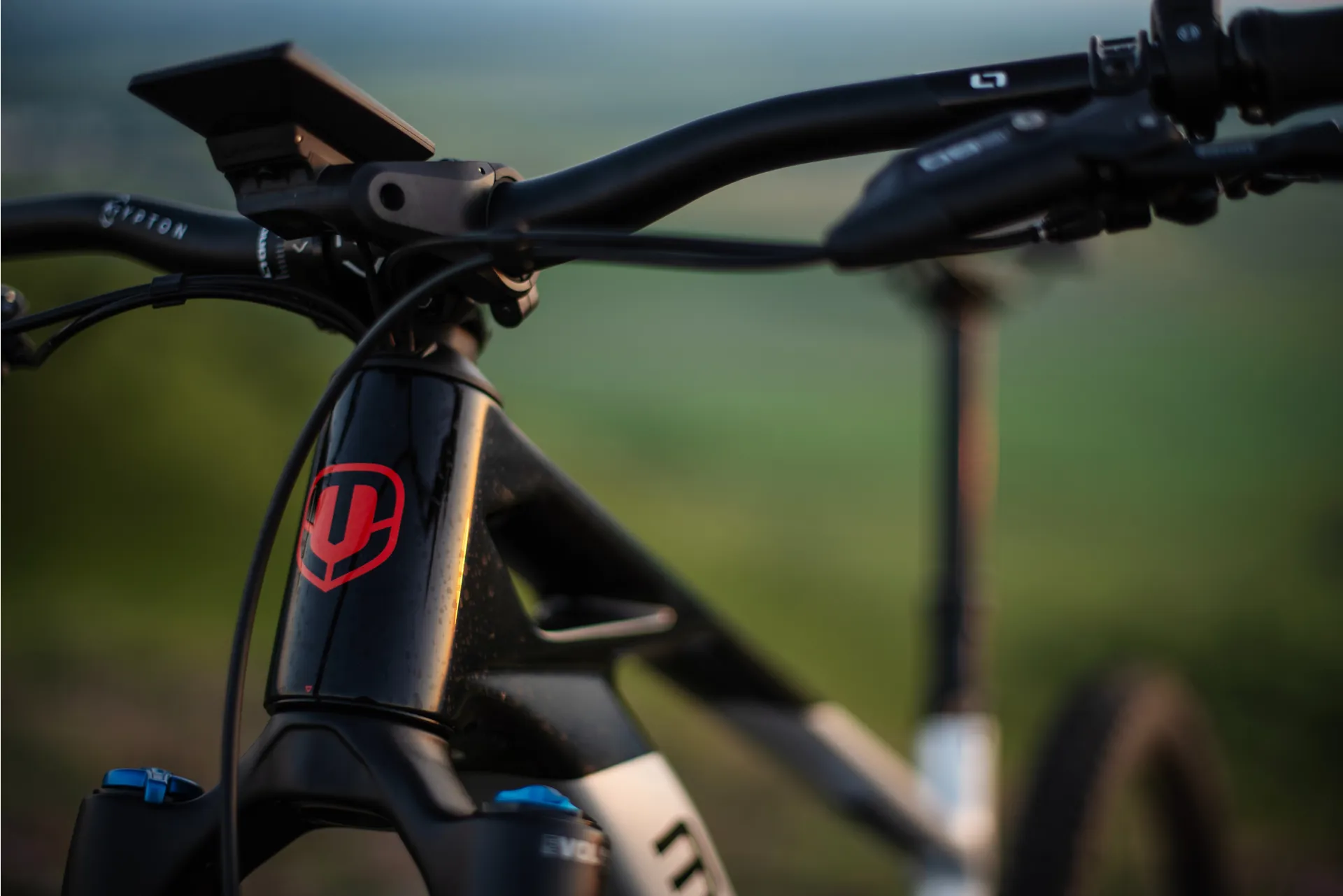

THE FRAME: 100% MONDRAKER IDENTITY

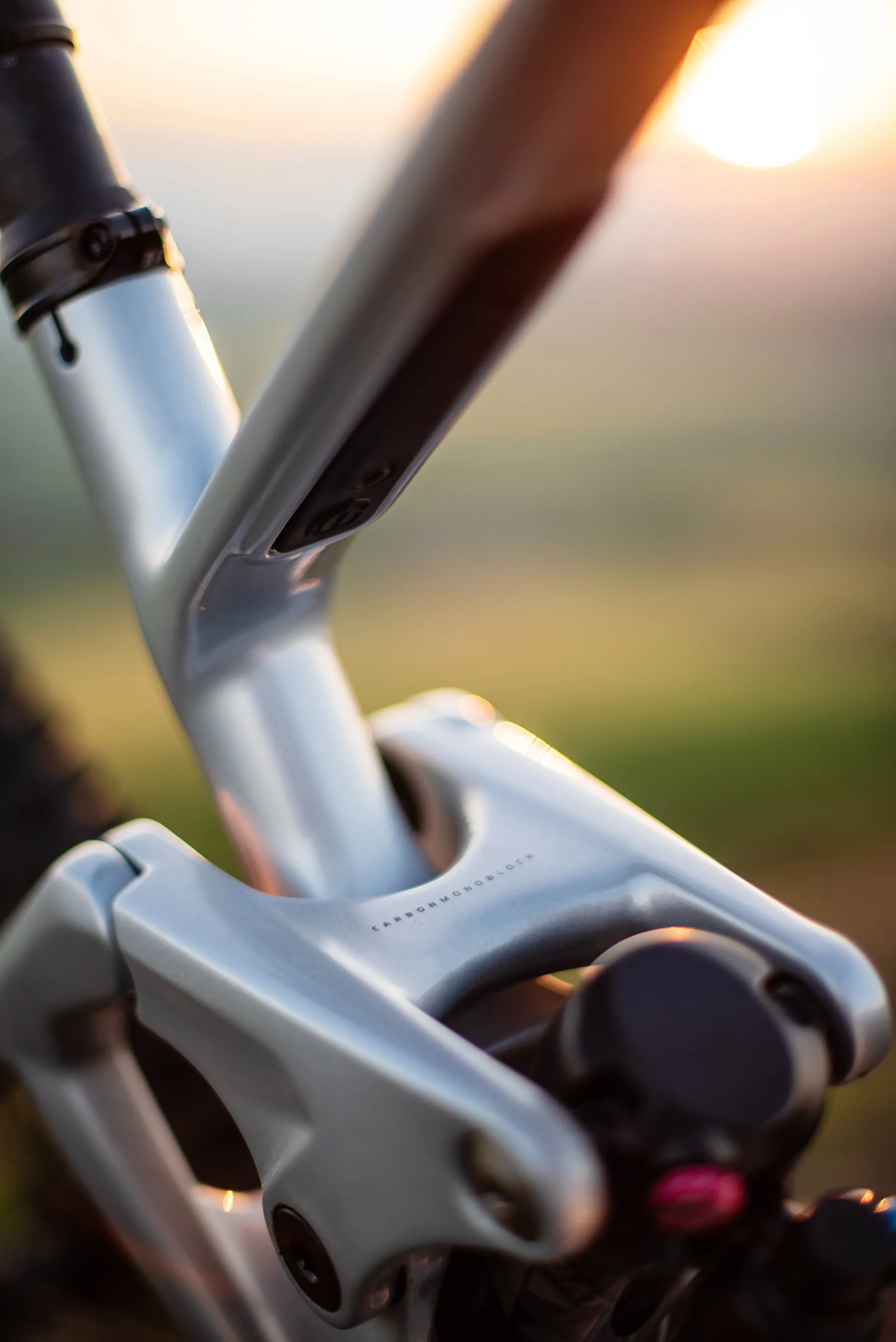

The DUNE boasts a lightweight (2,650g) Stealth Air Carbon frame, the pinnacle of Mondraker's carbon fiber technology. Its angular lines and integrated features, like a monobloc rocker linkage and a top-tube mounted Bosch controller, create a sleek and functional design. The frame even includes a bottle cage mount that can be swapped for a range extender if desired.

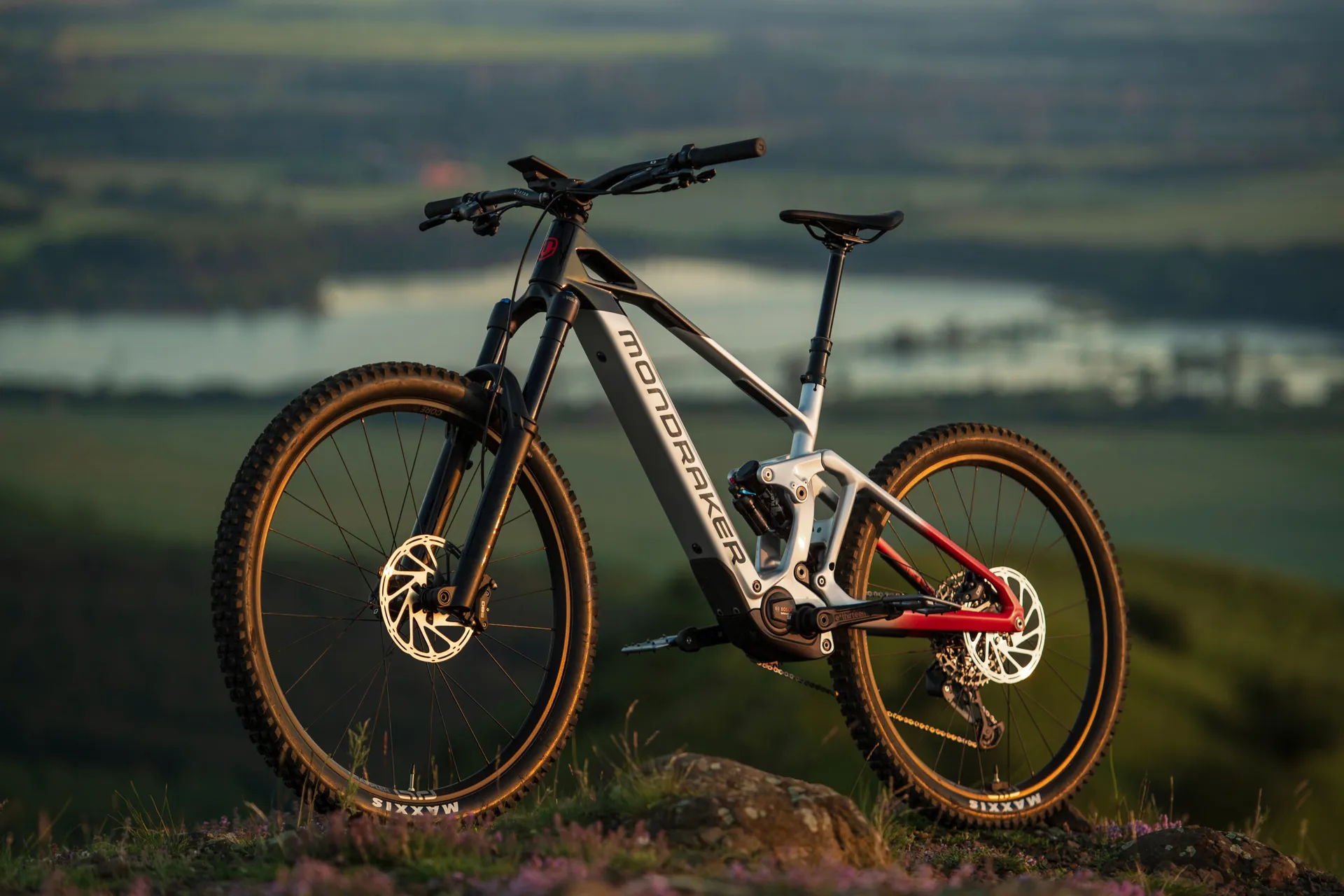

Mondraker Dune R 2024 - Silver/Black/Red

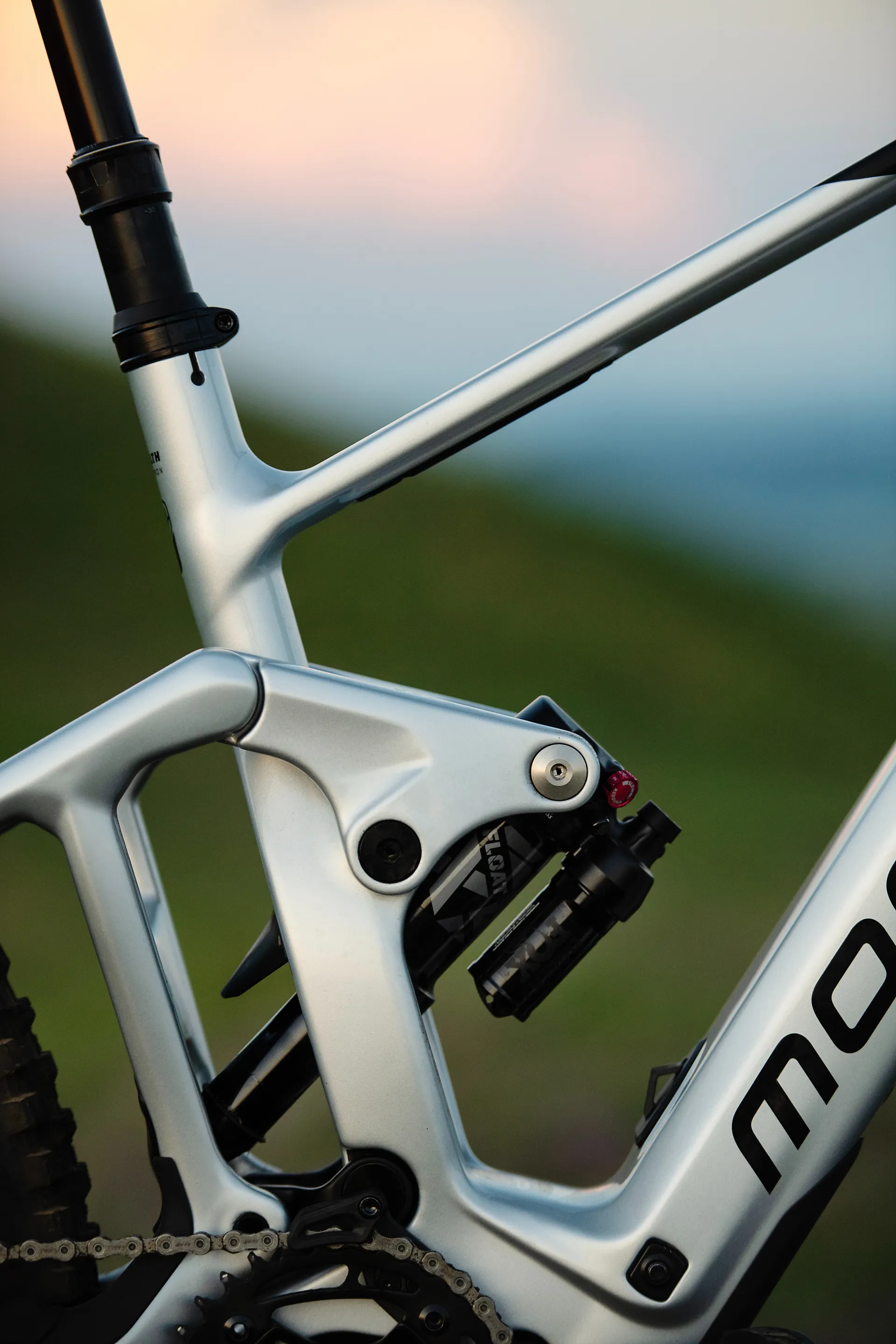

THE SUSPENSION: UPDATED ZERO SUSPENSION SYSTEM

Building on Mondraker's latest advancements, the DUNE utilises their Updated Zero Suspension System. This system keeps the shock lower and the swingarm more compact, improving stiffness, reducing weight, and offering better shock performance.

KINEMATICS: OPTIMISED

The DUNE's suspension is meticulously tuned for its long travel, balancing suppleness with pedaling efficiency for a dynamic ride.

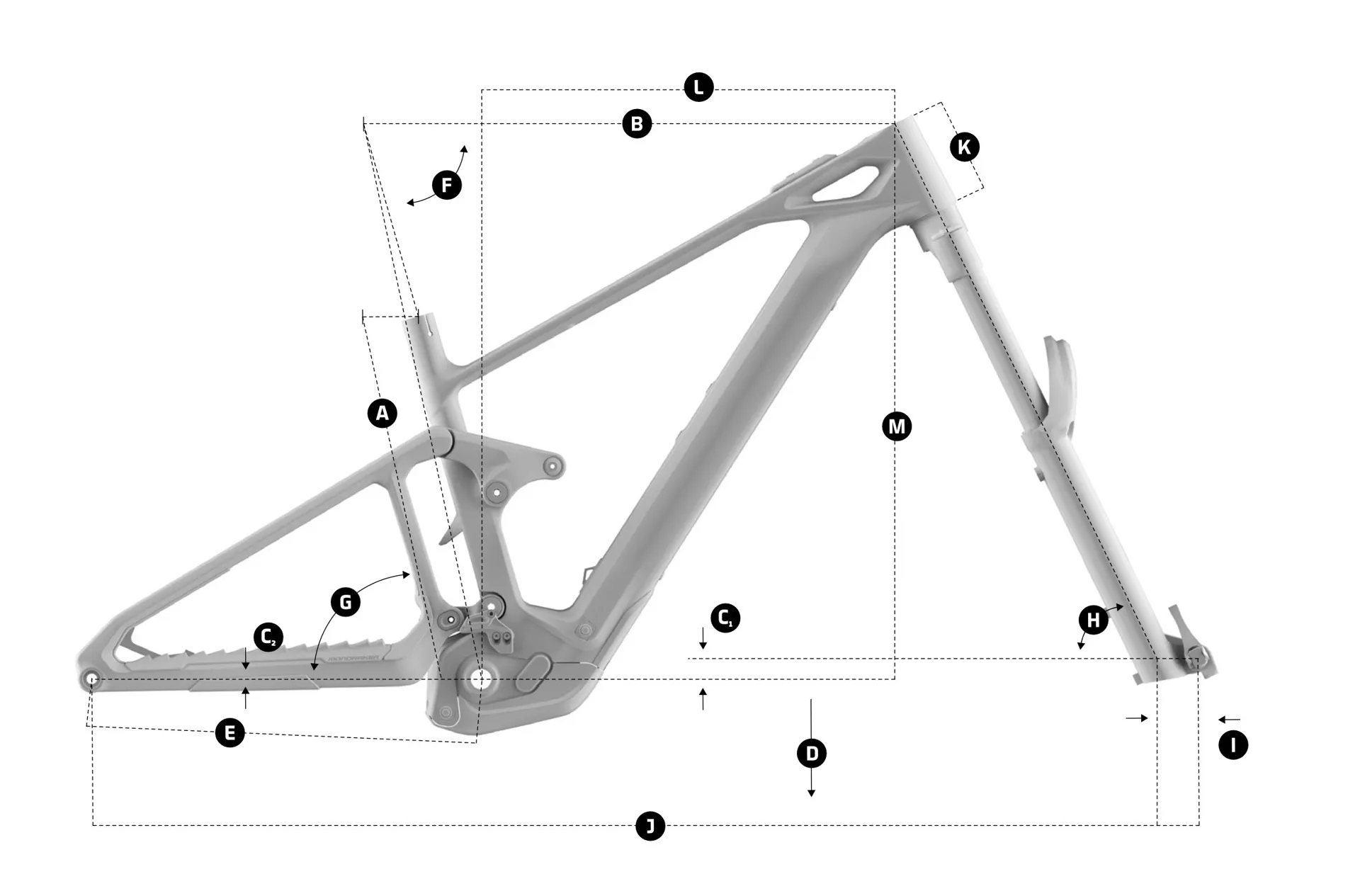

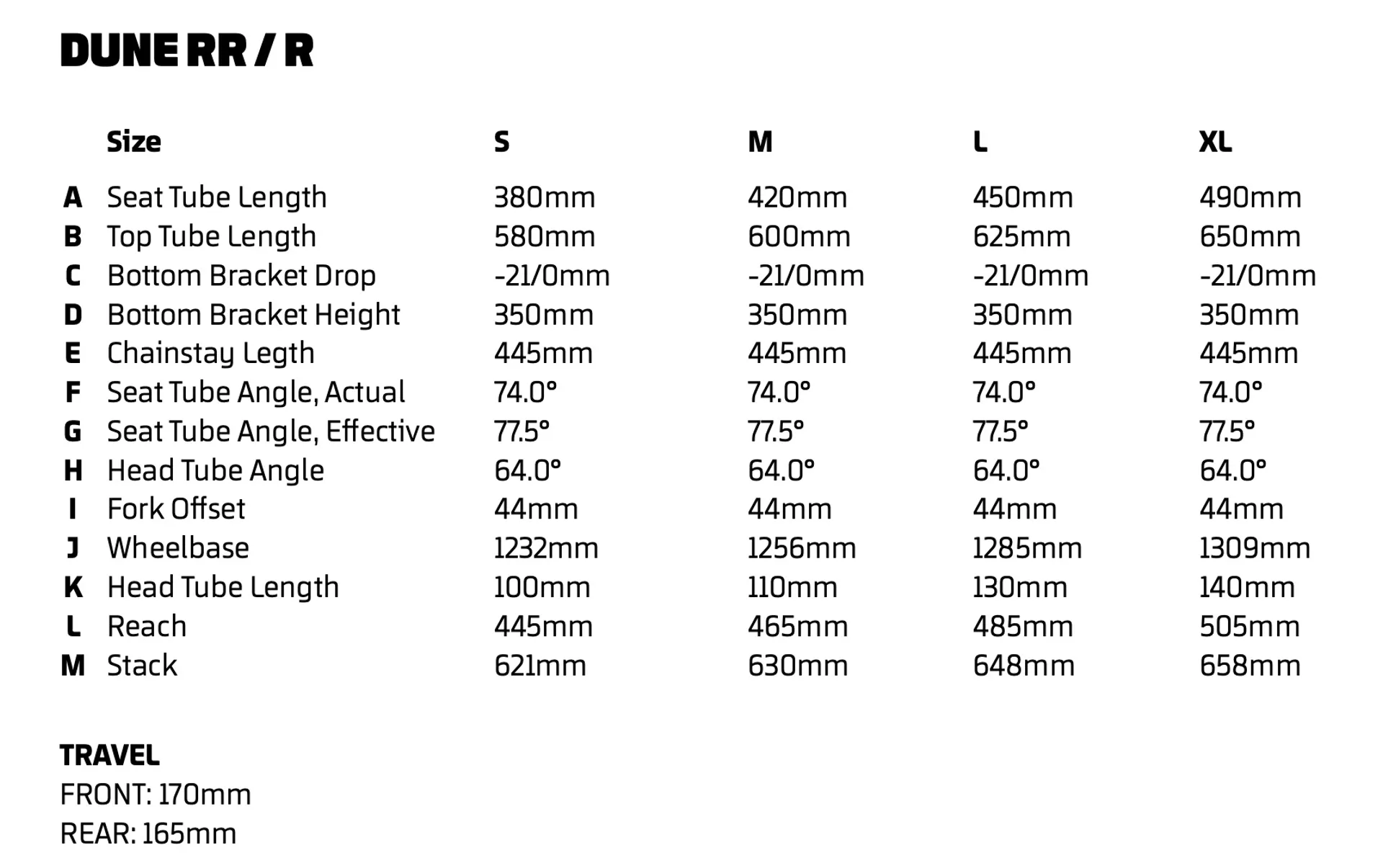

GEOMETRY: FORWARD

The DUNE is designed around Mondraker's Forward Geometry for high-speed stability. This translates to a slack head angle (further accentuated on the XR model), a steeper seat angle for climbing efficiency, and mid-length chainstays that balance stability with agility on mixed wheels.

Mondraker Dune R 2024 - Silver/Black/Red

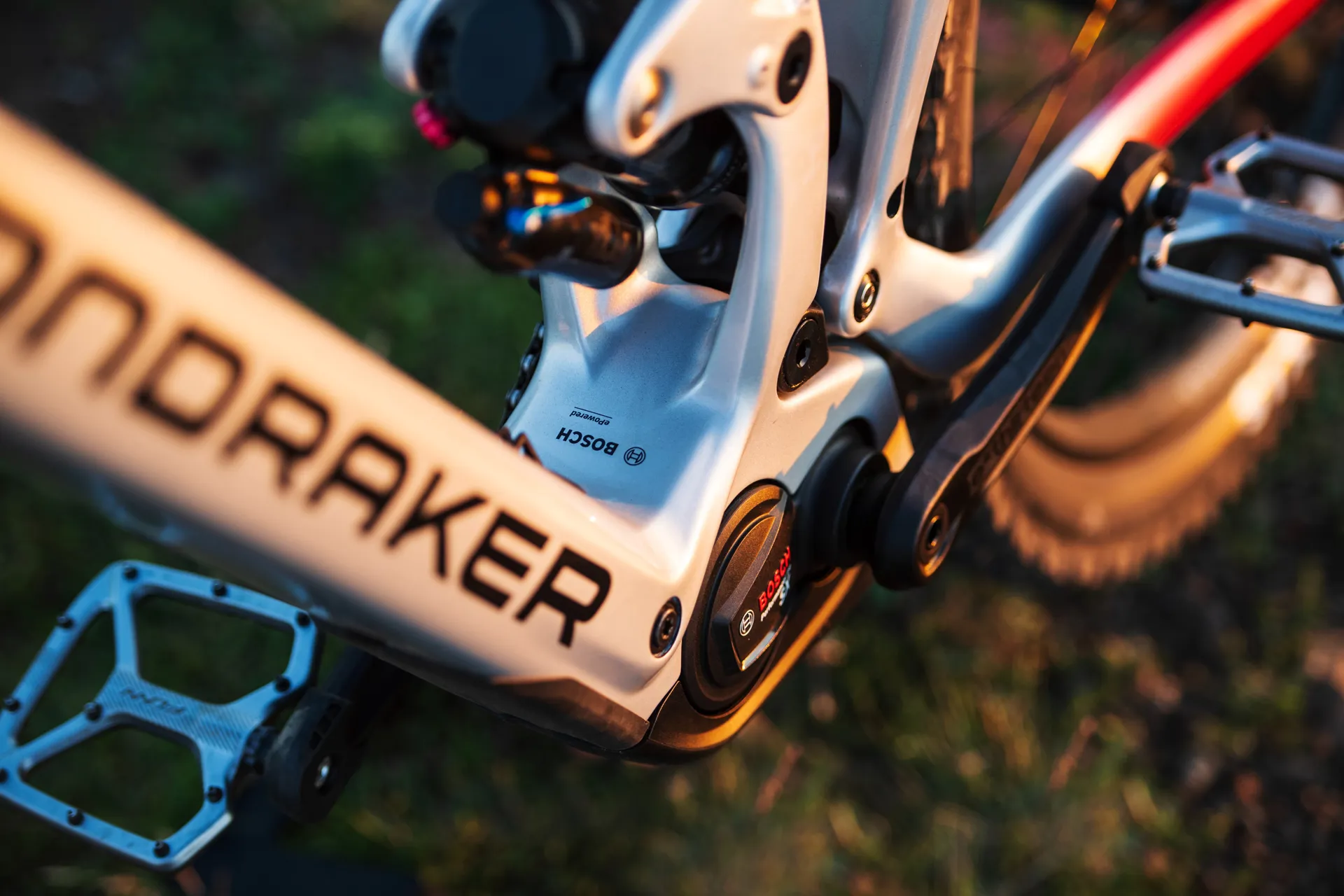

MOTOR: BOSCH SX. THE SWEET SPOT

The DUNE pairs perfectly with the powerful Bosch Performance Line SX motor, offering 55Nm of torque and impressive peak power. This lightweight motor, combined with the integrated 400Wh battery, provides ample range. DUNE is also compatible with Bosch's optional 250Wh range extender, boosting range by 60% to match a full-power Mondraker e-MTB while maintaining the DUNE's agility advantage. The Bosch system offers easy control through a top-tube controller, handlebar remote, and Kiox display with various riding modes and data tracking.



Technical Information
FRAME:
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capac
FRAME MATERIAL:Carbon
FORK:
FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
FORK TRAVEL:170 mm
REAR SHOCK:
Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
MOTOR:Bosch
MOTOR CONTROLLER:Bosch Smart System Mini Remote & System Controller
DISPLAY:Bosch Smart System Kiox 500
DRIVE UNIT:Bosch Performance Line SX (55 Nm)
BATTERY:Bosch CompactTube 400 Wh Battery
CHARGER:Bosch 4A
WHEEL SIZE:27.5 R 29 F
WHEELS:
e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 28R spokes 29 front, 27.5 rear / e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers / e*thirteen Boost 15x110mm, triple-seale
TYRES:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ casing, 60TPI, folding bead / Maxxis Minion DHR II 27.5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
DROPPER SEATPOST:Yes
SEATPOST:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95- 125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE:Fizik Terra Aidon Slim X5, 145mm
CRANKSET:
E.13 E*Spec Plus, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
HANDLEBAR:
Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
STEM:Onoff Krypton FG 30mm, CNC, 31.8mm barbore
GRIPS:Onoff Desert, 1lock-on, 135mm
SHIFTERS:Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
BRAKES:
Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads
REAR DERAILLEUR:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
CHAIN:Sram NX Eagle, 12s, Powerlock
NUMBER OF GEARS:12 Speed
FRONT MUDGUARD:MTB Monster Front Fender
Sizing Information
  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+
