Mondraker Play 24 Grey/Blue

Brand:Mondraker

Code:010.23208

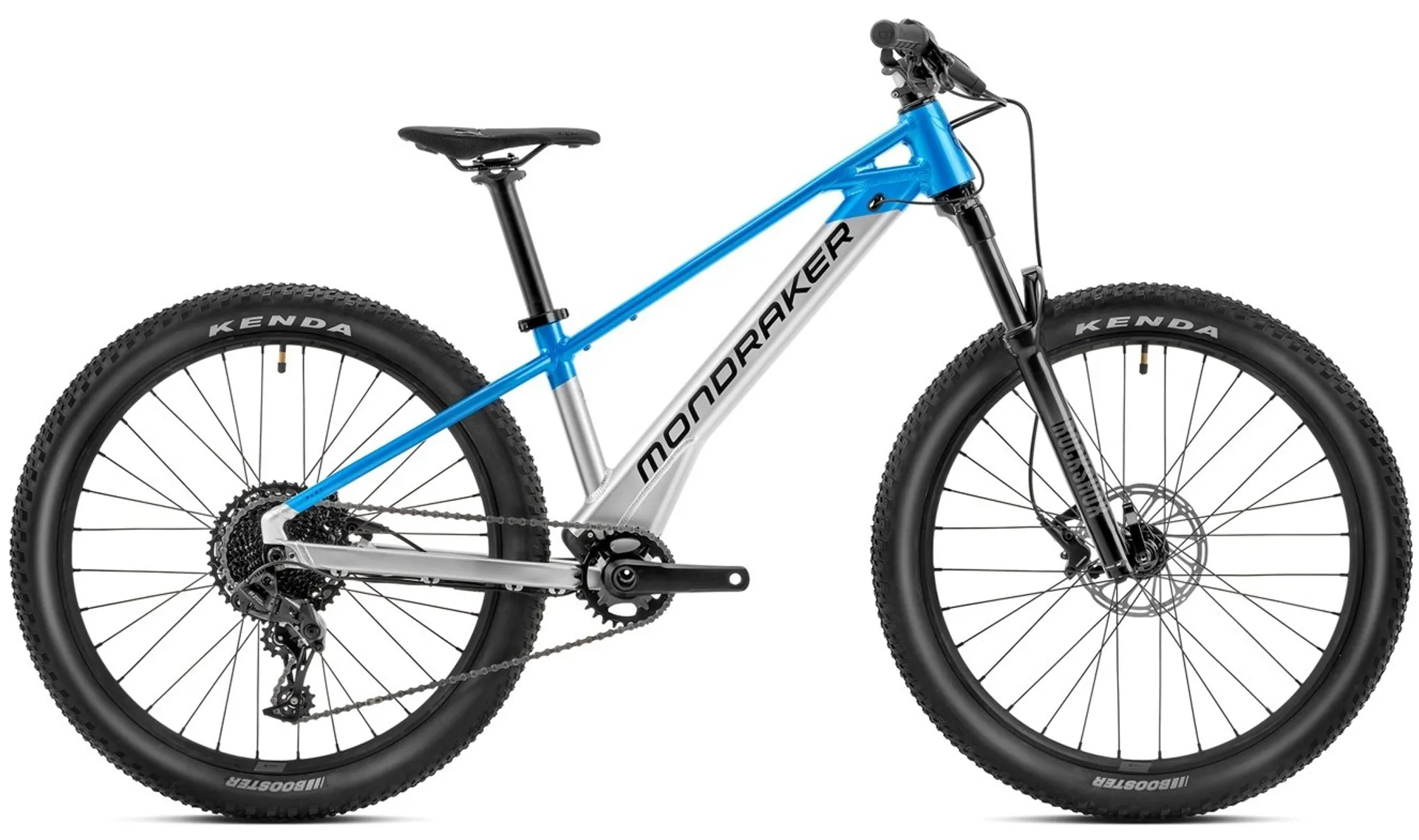

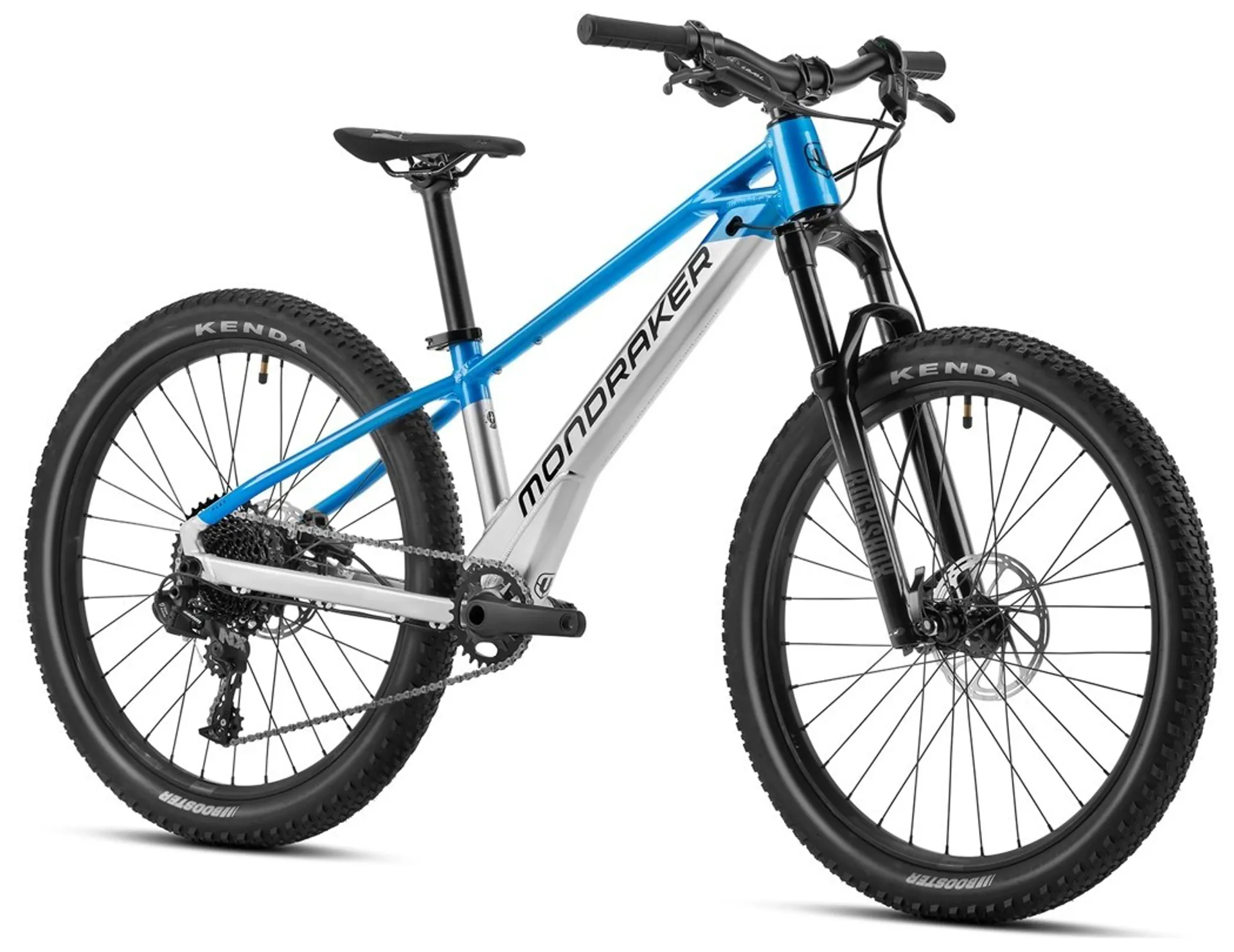

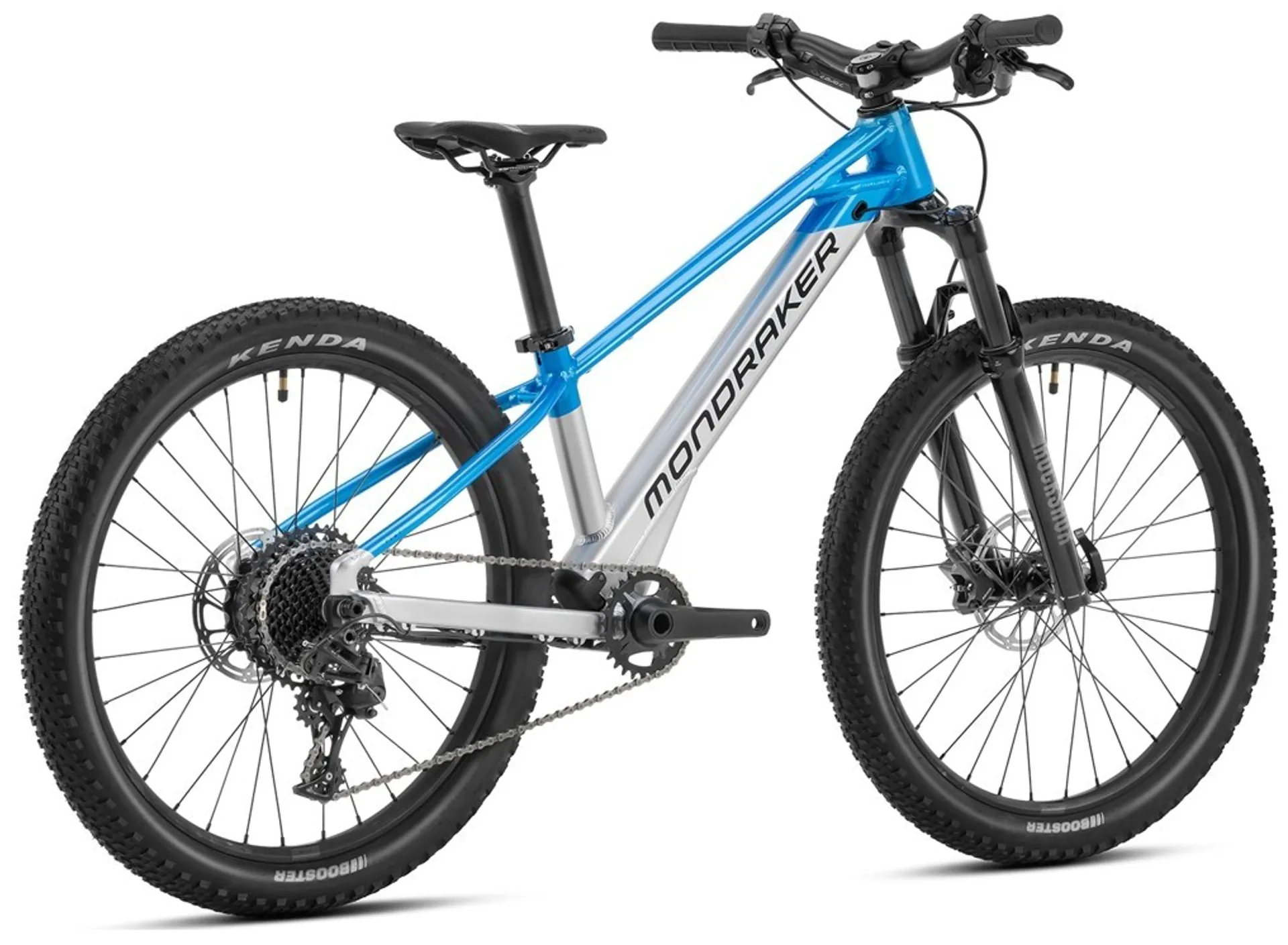

Designed for little big riders, the Mondraker Play 24 has the aesthetics and the class-leading features of our adult bikes adapted for 24" wheels.

Designed for little big riders, the PLAY 24 has the aesthetics and the class-leading features of our adult bikes adapted for 24" wheels. With a lightweight hydroformed 6061 STEALTH EVO aluminium frame the bike truly has a personality of it own. If we add in a Mahle motor and a 250Wh battery, we get an e-bike prepared to go anywhere and do anything. And that’s not all! It also comes fitted with a RockShox Judy Silver fork with 100mm of travel, SRAM Level hydraulic disc brakes, and 2.4" wide tyres to improve both comfort and grip.

Key features:

  • Play 24 6061 Alloy Stealth evo hydroformed tubing frame
  • RockShox Judy Silver TK 26 with 100mm of bump soaking travel
  • Sram 1x11 gears gives smooth and consistent shifting
  • Sram Level brakes offer all-weather stopping power
  • Kenda Booster tyres give enough traction in most conditions

Drive Information:

  • Motor: Mahle-Ebikemotion X-35
  • Battery: Mahle-Ebikemotion Internal 250Wh
  • User Interface: Mahle-Ebikemotion
Technical Information
Frame
Play 24 6061 Alloy Stealth Evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Fork
RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9×100mm axle, 30mm steel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
HeadsetONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º
StemONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HandlebarMDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GripsONOFF Twin, 1lock-on, 135mm
SeatpostMDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm
SaddleSDG Fly JR
Front BrakeSRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear BrakeSRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake LeverSRAM Level, tooled reach adjust, lever pivot bushings
RimsMDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
SpokesCN round stainless steel
Front HubFormula DC20LW, 9×100mm, cup & cone ball bearings, IS 6 bolts
Rear HubMahle-Ebikemotion X-35
Front TyreKenda Booster 24×2.4 single compound 30TPI, wire bead
Rear TyreKenda Booster 24×2.4 single compound 30TPI, wire bead
CranksetProwheel, Direct mount chain ring, 127mm
Chainring28T, steel
Bottom BracketProwheel BSA, 73mm
ChainSRAM PC1110 11s, Powerlock
Rear DerailleurSRAM NX, 11s, long cage, X-actuation 1:1
ShifterSRAM trigger NX 11s, X-actuation 1:1
CassetteSRAM PG 1030 11-42T, 11s
Derailleur HangerMondraker M073
Weight15.1 kg
DisplayMahle-Ebikemotion
MotorMahle-Ebikemotion X-35
BatteryMahle-Ebikemotion Internal 250Wh

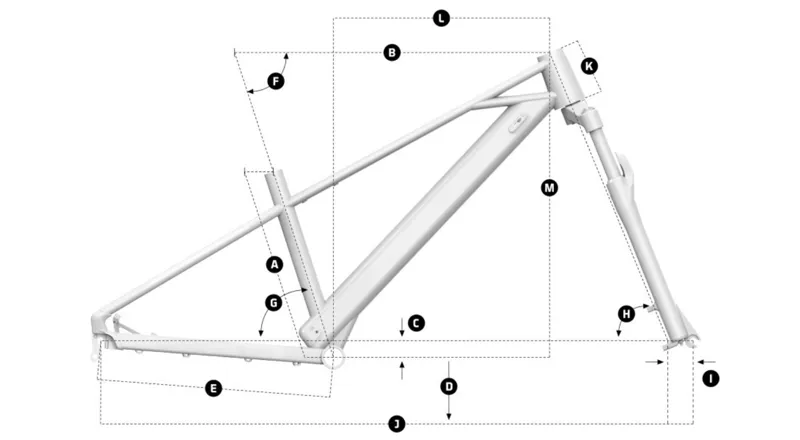

Sizing Information
Frame SizeMinimum HeightMaximum Height
One Size135cm (4’5”)155cm (5’1”)


Frame SizeOne Size
A – Seat Tube Length320mm
B – Top Tube Length517mm
C – Bottom Bracket Drop-30mm
D – Bottom Bracket Height280mm
E – Chain Stay Length405mm
F – Seat Tube Angle72º
G – Effective Seat Tube Angle72º
H – Head Tube Angle68º
I – Fork Offset39mm
J – Wheelbase994 mm
K – Head Tube Length100mm
L – Reach350mm
M – Stack537mm
