NS Bikes Define AL 150 0 Mountain Bike - White
NS Bikes Define AL 150 0 Mountain Bike - White
Ns Bikes

NS Bikes Define AL 150 0 Mountain Bike - White

£4,859.00 £5,399.00 10% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS
----

Our policy lasts 30 days.

If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery

Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.
If you’ve done all of this and you still have not received your refund yet, please contact us at info@spokesofbagshot.com.

Sale items (if applicable)

Sale price items will be refunded at the price paid.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at customerserivce@spokesonline.com, and send your item to: Spokes Online, 55 High Street, Bagshot, GU19 5AH, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.
If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Spokes Online, 55 High Street, Bagshot, GU19 5AH, United Kingdom.
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.
Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

NS Bikes Define AL 150 0 Mountain Bike - White

Brand:Ns Bikes

Code:NS4DFA052

MAIN FEATURES
  • Alloy frame with custom hydroformed tubes & double pass welds
  • Adjustable BB height
  • 160mm front / 150mm rear travel
  • Fox Factory 36 fork
  • Fox Factory Float X shock
  • Fox Transfer Factory dropper post
  • SRAM X01 Eagle Lunar derailleur
  • SRAM Code RSC brakes
Ns Bikes Logo

With over 150mm of travel in the rear and a 160mm fork this alloy 29er can can blast through the roughest stuff, while feeling great on a wide range of trails. This bike can pedal up the sections that others have to walk and fly over sections that others have to plough through. The adjustable reach and BB height will let you dial the bike to your riding style and the trails you plan to ride. The frame’s unique semi-internal cable routing is a solution that is elegant and easy to service. Large, sealed pivots guarantee long periods of smooth, service free function.

ADJUSTABLE BB HEIGHT
You can raise the BB height by 5mm from the stock settings by using the adjustable shock mount or you can completely transform the bike by changing the shock mount & shock (changes travel from 155 mm to 130 mm or vice versa).

OVERSIZED BEARINGS, SEALED MAIN PIVOT
The pivot that is most difficult to replace is hidden inside the frame and remains completely isolated from dirt and water inside the frame.

HYBRID CABLE ROUTING
The cables appear to be threaded through the downtube and chainstay...
But actually, they are only hidden in a special channel in the construction. Easy to replace anytime, anywhere!
Technical Information
FrameNS Bikes Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes
SizesS,M,L
Rear ShockFox Factory Float X 2pos-Adj Evol LV Trunnion 205x62,5
ForkFox Factory 36 Float FIT4, 160mm travel, 3pos-Adj w/ Open Mode Adj,15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
HeadsetNS Bikes custom tapered IS42/IS52 reach adjustable offset cups (+/-10mm), sealed bearing
StemNS Bikes Quantum Lite 45mm, 35
HandlebarNS Bikes Licence Carbon 800mm, 38mm rise, 35
GripsNS Bikes Hold Fast supersoft
SeatpostFox Transfer Factory M-150mm,L- 175mm, 31,6mm
SaddleWTB Volt Medium Cromoly
Front brakeSram Code RSC 4 piston, 200mm
Rear brakeSram Code RSC 4 piston, 180mm
Levers/
RimsNS Bikes Enigma Roll 29” front, NS Enigma Rock 29” rear, 32h, tubeless ready
SpokesSpokes w/14mm nipples
Front hubNS Bikes Rotary 110x15mm Boost (sealed bearings)
Rear hubNS Bikes Rotary Cassette 148x12mm Boost (sealed bearings)
Tires front/rearSchwalbe Magic Mary 29x2.35,TL-Easy / Schwalbe Nobby Nic 29x2.35,TL-Easy
CranksetTruvativ Descendant 7K DUB 170mm 32t
Bottom bracketSram DUB BSA 73mm
Pedals/
ChainSram GX Eagle, 12spd
Chainguide/
DerailleurSram X01 Eagle Lunar, 12spd
ShifterSram GX Eagle, 12spd
CassetteSram XG-1275, 10-50t 12 speed
Sizing Information

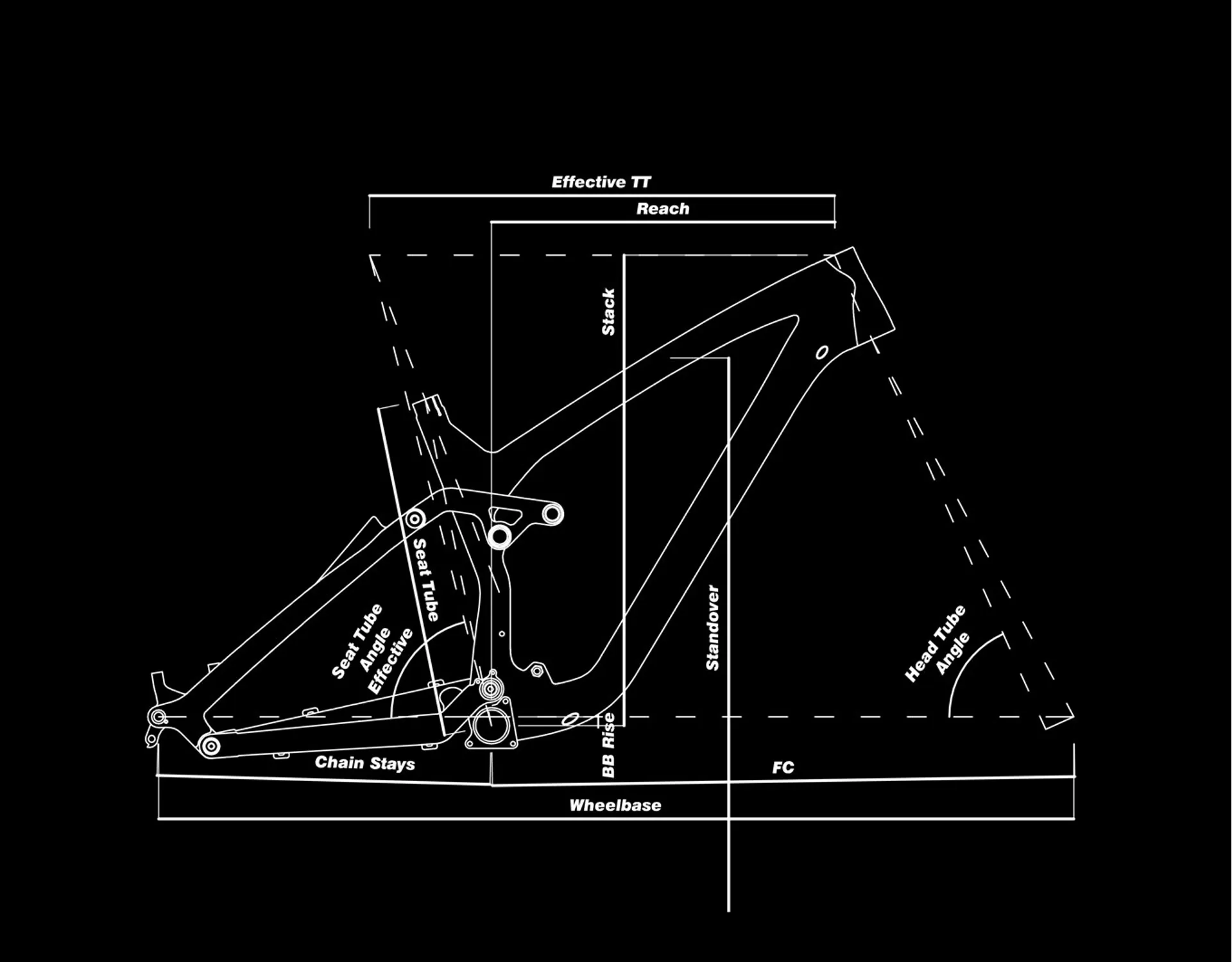

NS Bikes Define AL 150 0 Geometry

Geometry
SML
Wheel Size29"29"29"
Fork Treavel160160160
Reachmm430460490
in16,918,119,3
FCmm763798832
in3031,432,8
Standovermm746742739
in29,429,229,1
Stackmm630639648
in24,825,225,5
Effective TTmm586619652
in23,124,425,7
Actual TTmm553582614
in21,822,924,2
Seat tubemm396432483
in15,61719
Chainstaymm440440440
in17,317,317,3
BB Dropmm353535
in1,41,41,4
BB heightmm335335335
Headtubeangle64,564,564,5
ST angleeffective767676
Wheelbasemm120112361270
in47,348,750
