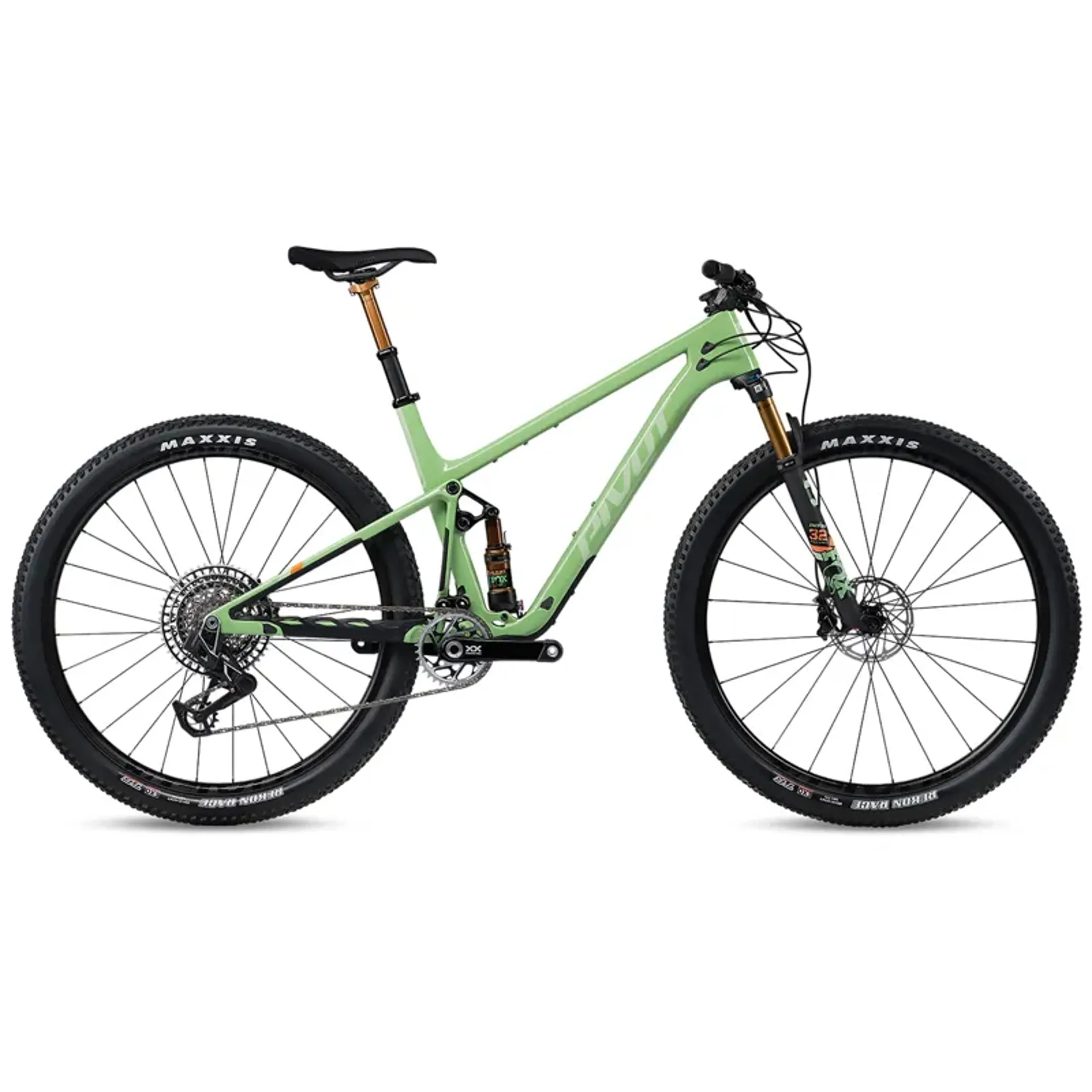

The mach 4 sl was made for XC racing, to a design brief calling for world cup focus, but let it punch above its weight. In other words, it achieves the fast, light build favoured by XC specialists, without compromising on handling and ride quality.
This unyielding performance has its roots in pivots proprietary hollow core carbon frame construction, which gets lighter with each generation, with even the rear shocks rocker link having been thoughtfully slimmed down. Nonetheless, the carbon maintains the strength and stiffness required to stand up to hard riding.
The geometry of this frame incorporates a relaxed head angle, a long reach and long wheelbase, for stability, and a steep seat angle, for a lower centre of gravity, increased composure and better control over the bike at high speeds.
Since each frame undergoes independent strength to weight analysis and is constructed from custom-tuned carbon to ensure consistent stiffness, you can be sure that the same performance benefits will be delivered, regardless of frame size, especially since the two smallest sizes sport correspondingly lighter shock valving.
As ever, the brands flip-chip helps to boost the mach 4 sls versatility, yielding either 95mm or 103mm of rear travel with this build, delivered by a light Fox factory dps shock that offers three graduated damping positions, allowing it to respond appropriately to different degrees of impact. As a bonus, the shocks upright position means that, even on the smallest frame option, theres room for a water bottle or two, with larger sizes and clearance for a solid 2.4 tyre.
Pivots trademark, position sensitive dw-linktm suspension, meanwhile, has been tweaked to combat pedal bob more efficiently than ever, so it delivers a plusher, more comfortable ride, whilst saving energy when youre putting in maximum effort. Its kinematics have also been refined to lend power to your pedal strokes, not to mention an admirable responsiveness, so that youll feel in full control and ready to not just respond to, but enjoy, whatever the trail throws at you.
all of this means the mach 4 sl frame, which weighs around 1.66kg on its own, 1.93kg with the addition of a rear shock and under 10.5kg fully built, is light and speedy enough to take you to the podium, while also offering a soft enough ride to preserve your energy, along with outstanding control and handling. It will give you the required confidence to put in your best effort during the race, even over challenging, variable terrain.
